GD&T vs. reality: how measurement uncertainty should change how you tolerance

GD&T is a beautiful language for saying exactly what a part must be. But it quietly assumes something that's never true: that you can measure the part perfectly. Every real measurement carries uncertainty, and that uncertainty doesn't sit politely outside your tolerance — it eats into it.

The guard-band problem

If a feature is toleranced ±0.01 and your measurement system is uncertain by ±0.002, you can't actually use the full ±0.01. A reading right at the limit might be in spec or out — you can't tell. To avoid accepting bad parts, you guard-band: you shrink the *acceptance* zone by the uncertainty, and now your shop is effectively holding a tighter tolerance than the drawing asks for, whether or not anyone said so.

What I actually do about it

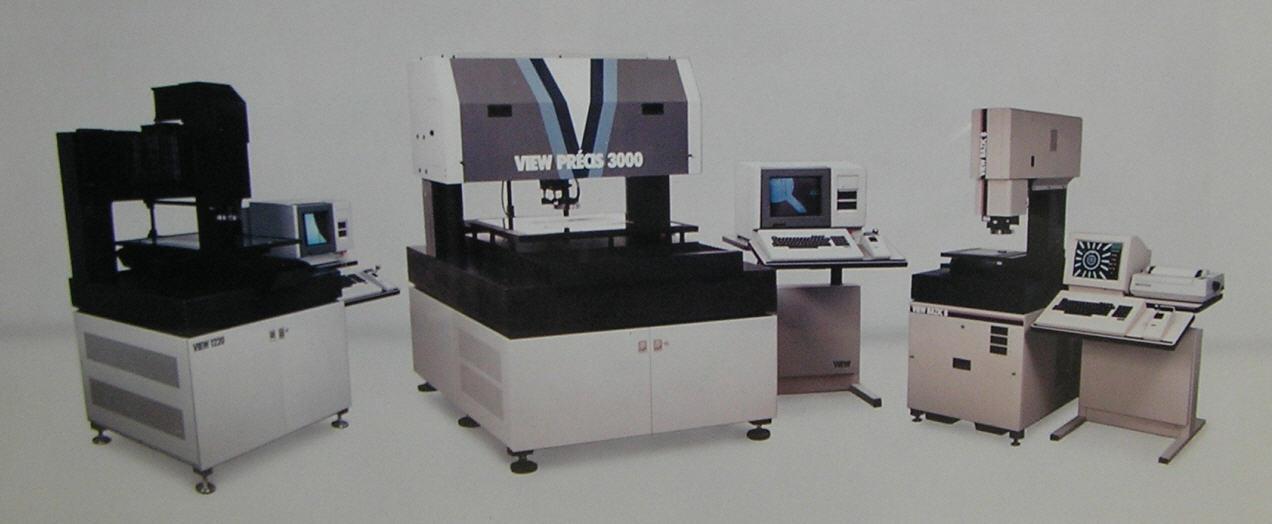

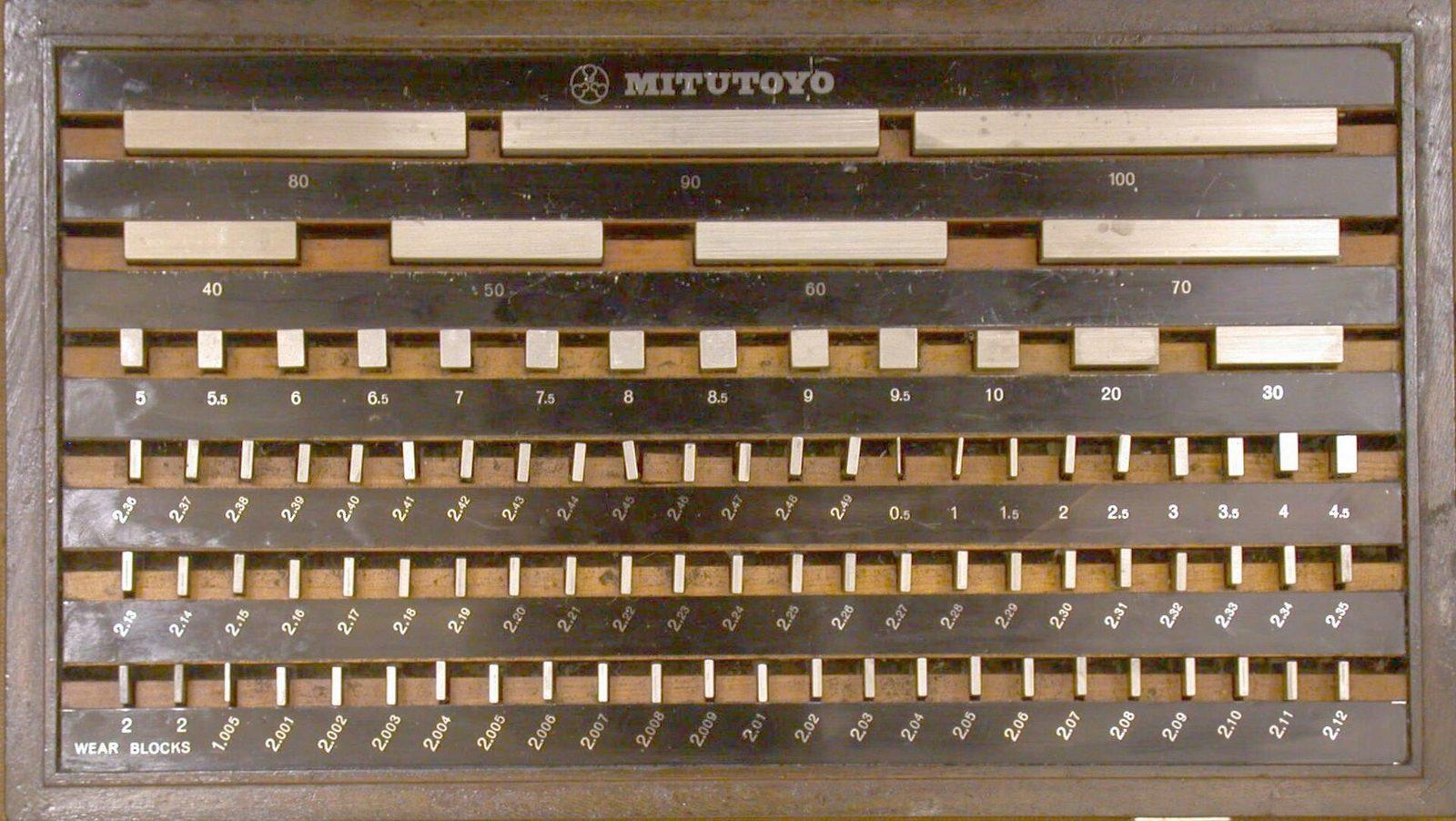

1. 1Know the uncertainty of the measurement, not just the instrument. It depends on the feature, the surface, the fixturing, and the operator — not only the CMM's spec sheet. (This is exactly why I modelled probe sliding with FEA.)
2. 2Guard-band deliberately, and tell the customer you're doing it, rather than silently tightening the process.
3. 3Match the tolerance to a measurable reality. If a tolerance demands an uncertainty you can't achieve, that's a design conversation, not a shop heroics problem.
4. 4Report uncertainty with results. A number without a bound invites false confidence on both sides.

Why it's worth the friction

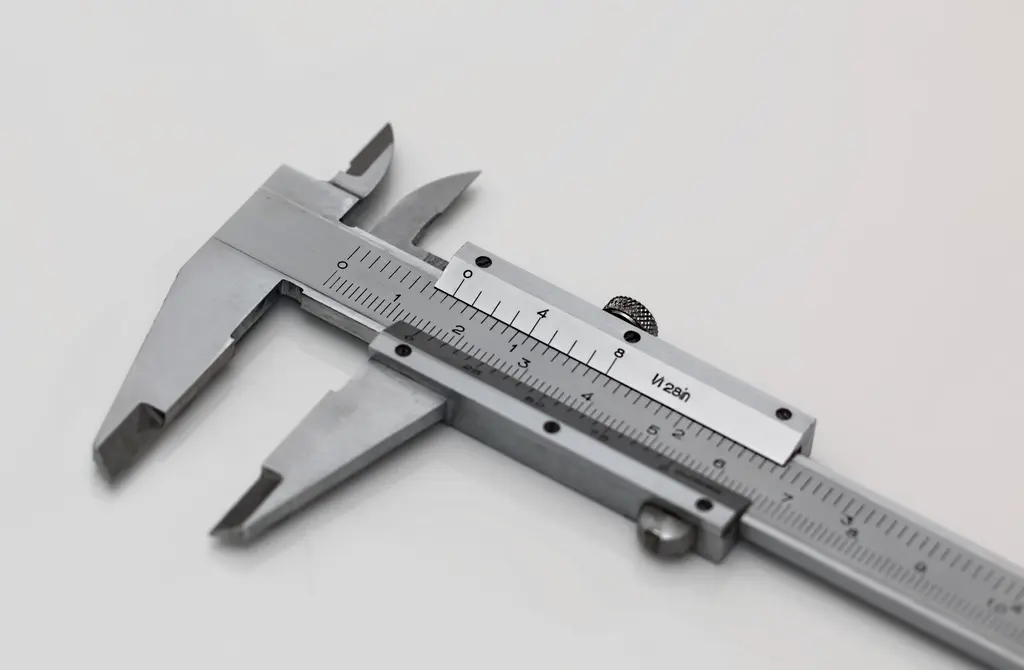

Treating uncertainty as a first-class part of GD&T makes accept/reject decisions honest. You stop arguing about borderline parts and start agreeing on what "in spec" actually means given the gauge in your hand. It's less satisfying than a crisp limit on a drawing — and far more useful on the floor.

Every tolerance has a silent partner: the uncertainty of the thing measuring it. Design as if both are in the room.
